IM6 Max Extreme Performance

Parameter

• Length * Width * Height (mm) 4,904*1,988*1,669
• Wheelbase (mm) 2,950
• Drag Coefficient 0.237
• Seats 5
• Front Trunk Capacity (L) 32
• Rear Trunk Capacity + Hidden Compartment Capacity (L) 665~1640

Performance

• Drive Train AWD
• E-Range (CLTC, km) 704
• Battery Capacity (kWh) 100
• Acceleration Time (0-100kph, s) 3.48
• Top Speed (kph) 252
• Multiple Driving Modes

Powertrain

• Quasi 900V SiC Platform
• Ultra Performance Mg-Al Alloy Hurricane Motor (21,000rpm / Oil Cooled / 8-layer Hair-Pin)
• Motor Power (kW) 200（Front） / 379（Rear）
• Horsepower (hp) 766 HP
• Max Power (kW) / Torque (Nm) 572/ 800
• V2L (Max: 6.6kW)
• Lithium Battery Low Voltage System
• 200 (Front) / 379 (Rear)

Chassis

• All-aluminum Light-weight Chassis
• Double Wishbone Front Suspension / Multi-Link Rear Suspension
• PIRELLI New Scorpion tires (with PNCS Soundproofing Material)
• 21-inch Sporty Wheels (Front 235mm / Rear 265mm)
• Staggered Wheels
• Continental Front 4-piston Fixed Brake Calipers (IM Exclusive Color)
• Electric Power Steering (EPS)
• Regenerative Braking System
• Auto Hold
• eTAC (Edge Torque Adaption Control) Technology
• EVD (Expeditious Vector Drive) AWD Technology

Safety

• Front & Side Airbags 2+2
• Side Curtain Airbags 2
• Front Pre-tensioner Seatbelts
• Rear 3-Point Seatbelts (Pre-tensioner Seatbelts Equipped on Rear Side Seats)
• 360° Cameras
• Direct Tire Pressure Monitoring System (TPMS)
• Electric Child Locks
• Pedestrian Warning System
• Anti-locked Braking System (ABS)
• Electric Brake-force Distribution (EBD)
• Traction Control System (TCS)
• Vehicle Dynamic Control (VDC)
• Emergency Brake Assist (EBA)
• Hill Hold Control (HHC)
• Intelligent Electronic Differential Lock (XDS)
• Cornering Brake Control (CBC)

Exterior

• Frameless Doors
• Automatic Flush Door Handles
• Power Tailgate
• LED Headlights
• LED Strip Taillights
• Active Grille Shutter (AGS)
• Side Mirrors (Automatic Folding / Power / Memory / Heated / Automatic Tilt Down in Reverse)
• Power Charging Port (with Indicator Light)
• Automatic Rain-Sensing Windshield Wipers (with Hidden Spray Nozzles)

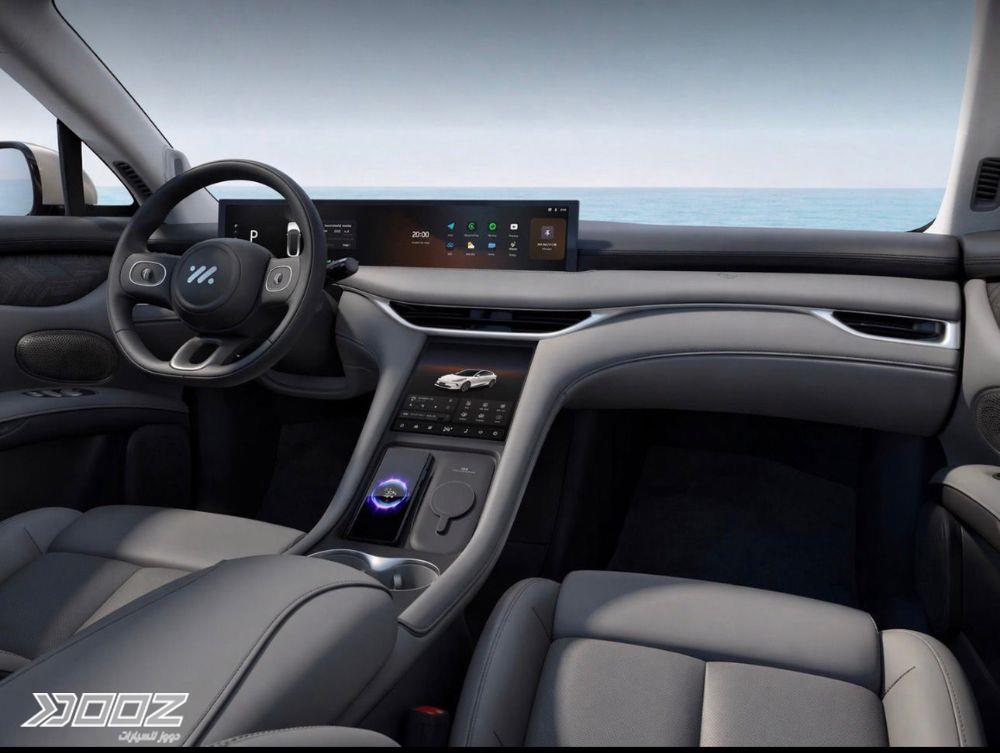

Interior

• Double-glazed Silvering Thermal-insulating Panoramic Glass roof
• Laminated Windows (4 Doors)
• Full-rim Sporty Steering Wheel (Nappa / Heating / 4-way Manual / Hands-off Detection)
• 256-color Ambient Lights

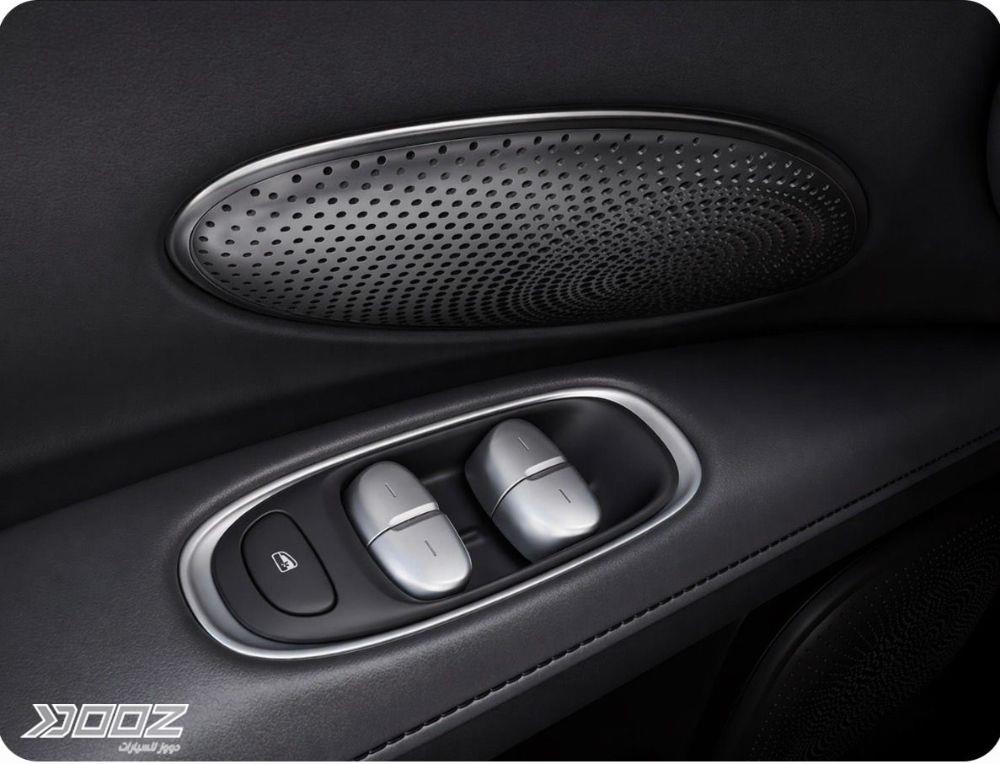

• Anti-pinch Windows with One-click Up & Down
• IM MAG Hub *9
• Wireless Mobile Charging Pad (Qi, 15W)
• USB Type-C Charging (Max: 60W) (Front*2 + Rear*1)
• 12V Power Sockets 2

A/C

• 2-zone Automatic Air-conditioner (High Pressure Heating Pump)
• Invisible Air Vents
• Rear Independent Air Vents
• Intelligent Air Quality System
• Activated Carbon Filter
• PM 2.5 Sensor

Acoustics and Seats

• 20 Speakers (including 4 Sky Speakers)
• 7.1.4 WANOS Spatial Audio
• Nappa Perforated Leather Seats *10
• 12-way Power Driver Seat (including 4-way Power Lumbar Support)
• 2-way Manual Driver Seat Legrest
• Driver Seat Memory and Easy Entry
• 6-way Power Front Passenger Seat
• 2-way Manual Front Seat Headrests
• Front Seat Heating
• Front Seat Ventilation
• Rear Adjustable Backrest (10°)
• Rear Foldable Seats (40/60)
• ISOFIX 2

Infotainment System

• 26.3-inch Immersive Touch Screen (4320*720 | Elevated)
• 15.5-inch Passenger Touch Screen (2488*720 | Elevated)
• 10.5-inch Central Touch Screen (1500*1640)
• IM Operating System (IM OS)
• Proactive Vision Supplement System (PVSS)
• Rain Night Mode
• Intelligent Scene Modes (Snap Mode, Pet Mode and etc.)
• Digital Video Recorder (DVR)
• NFC Key Card

ADAS (Advanced Driving Assistance System)

• Intelligent Pilot Device (IPD) Powered by NVIDIA Orin X®

IM AD Intelligent Hardware System

• Ultra-long-rang High-precision Lidar*1
• Ultrasonic Sensor*12
• HD Camera*11
• Millimeter Wave Radar*3
• Positioning Unit*1
• Military-Grade Inertial Navigation*1

IM AD Standard Package

• Adaptive Cruise Control (ACC)
• Demand Lane Change (DLC)
• Intelligent Lane Change (ILC)
• Forward Collision Warning (FCW)
• Rearward Collision Warning (RCW)
• Automatic Emergency Braking (AEB)
• Blind Spot Detection (BSD)
• Lane Change Assist (LCA)
• Door Open Warning (DOW)
• Front Cross Traffic Alert (FCTA)
• Rear Cross Traffic Alert (RCTA)
• Rear Cross Traffic Braking (RCTB)
• Lane Departure Warning (LDW)
• Lane Departure Prevention (LDP)
• Speed Limit Information Function (SLIF)
• Lane Centering Control (LCC)
• Park Distance Control (PDC)
• Auto Park Assist (APA)
• One Touch iAD (AI Chauffeur)
• One Touch Parking
• One Touch Side Parking
• One Touch Escape
• One Touch Traceback
